Italiano3D printing with plastics for the highest-level detail picture

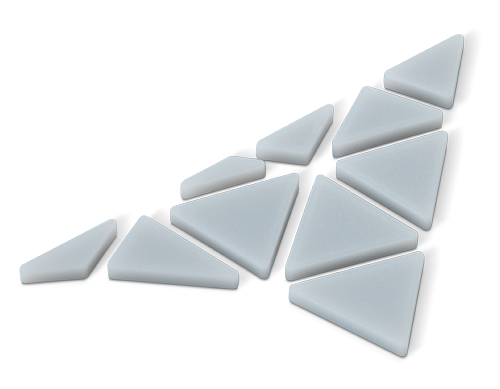

The advantages of objects made of epoxy resins are the high level of detail and a smooth surface. Among other things, stereolithography, in which the liquid plastics are cured in layers by a UV laser, serves as the production process. You can choose between the VisiJet variants “Tough,” “Clear,” and “HiTemp,” which excel based on their durability, transparency or temperature resistance, as the name describes.
.png)
Plastics for stereolithography
In the following table you will find some of the plastics that we currently offer in stereolithography (SLA) on protiq.com – including some selected material characteristics.
Please note: The table is not automatically updated and therefore does not necessarily represent the complete or most up-to-date material selection. As we are continuously developing the range on the PROTIQ Marketplace and adding new materials, changes may occur at any time. Please also note that the material characteristics may vary depending on the manufacturing partner.
You will find the binding information and the entire current SLA portfolio in the ordering process after you have uploaded your 3D data on our homepage. The relevant technical data sheets are also available there.
|
Material name |
Base color |
Density |
Tensile strength |
E-modulus |
Elongation at break |
Hardness |
Heat resistance |
|
RS Clear |
Colorless |
1,16 g/cm³ |
65 MPa |
2800 Mpa 2200 Mpa |
6,2% |
77 bis 80 (Shore D) |
58,4°C (1,82 MPa) 73,1°C (0,45 MPa) |
|
RS High Temp |
Amber |
1,16 g/cm³ |
58,3 MPa |
2750 Mpa 2620 Mpa |
3,3% |
85 (Shore D) |
101°C (1,82 MPa) 238°C (0,45 MPa) |
|
RS Tough _____________________
|
Gray
|
1,19 g/cm³ |
41 MPa |
1890 Mpa 1850 Mpa |
18%
|
86 (Shore D) |
54°C (1,82 MPa) 62°C (0,45 MPa) |
3D data check
The data check is always done automatically. This procedure guarantees a consistently high quality. After uploading your file to our server, the software checks the file for manufacturability. Small errors are repaired automatically. In the case of large errors, you will be informed before printing and asked for approval by means of a preview.
TIP: Upload your file and have it automatically repaired by the software. You will then be able to download the repaired file under the item “File Info.” In addition, the file is saved in your account.
